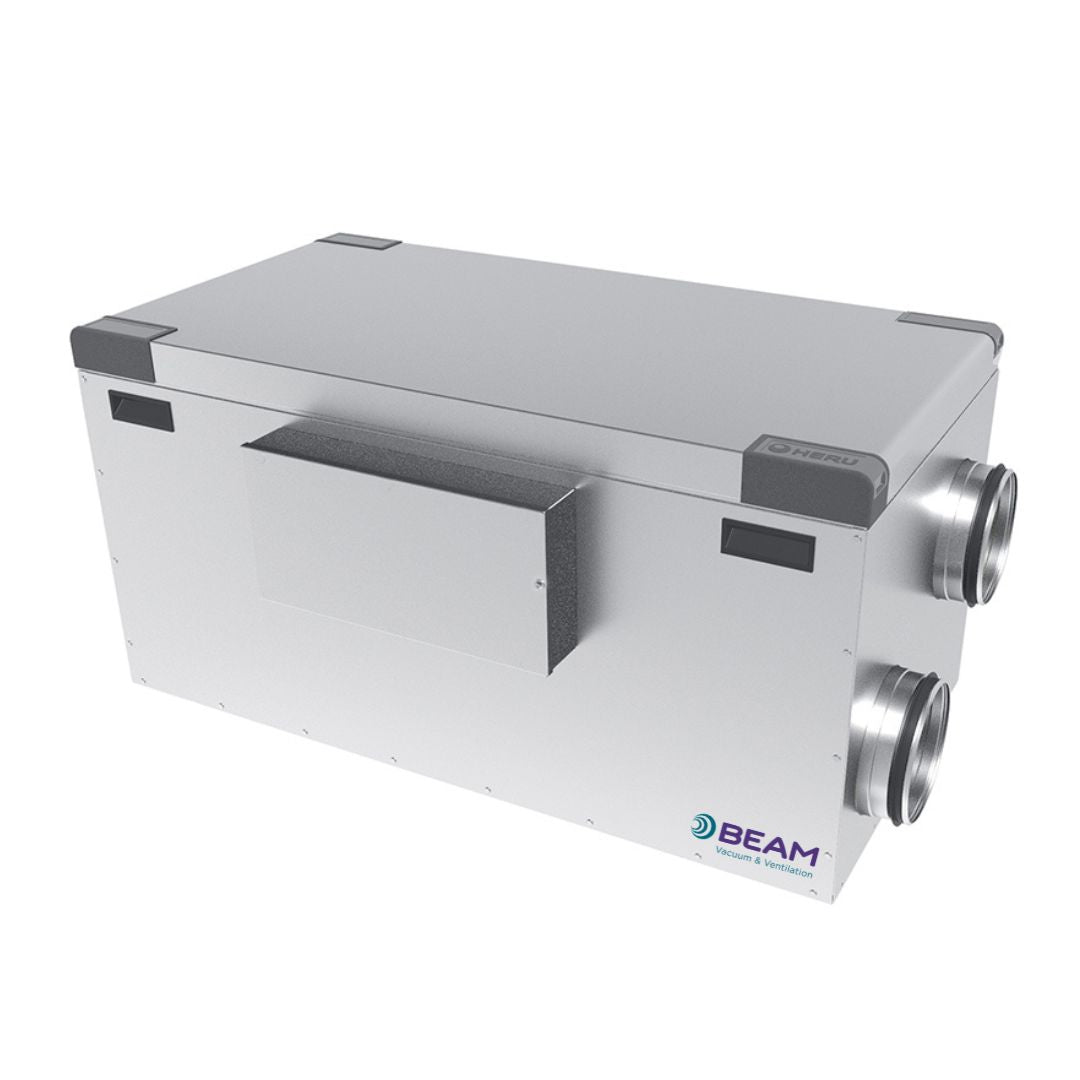

The HERU NG 160S EC fris a high-performance Mechanical Ventilation with Heat Recovery (MVHR) unit designed to deliver fresh, filtered air while significantly reducing heat loss. Ideal for larger homes, apartments, offices and commercial spaces, it provides a healthier indoor environment while helping to lower heating costs.

Featuring a highly efficient rotary heat exchanger, quiet EC fans and intelligent controls, the HERU 160 S EC continuously recovers heat from extracted air and transfers it to incoming fresh air. Smart app control, demand-based ventilation options and straightforward maintenance make it an excellent choice for modern energy-efficient buildings.

Key Features

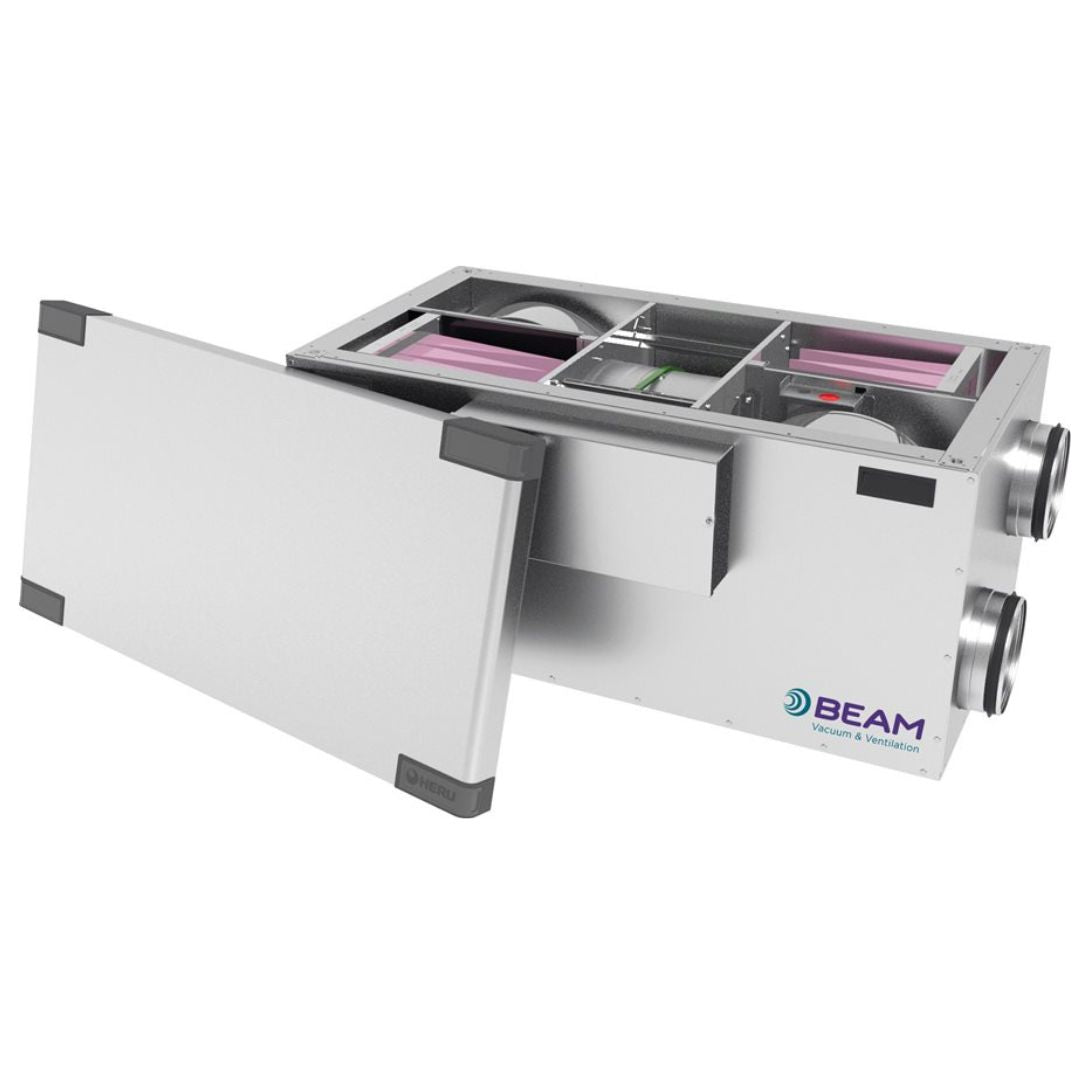

• Regenerative, non-hygroscopic, aluminium rotating heat exchanger located in the centre of the unit.
• Low energy, high performance EC fans
• Up to 85% heat recovery efficiency
• Large surface Pollen Grade F7 filter (inlet and outlet) is the highest specification available for any residential ventilation system
• Increases thermal comfort by heat recovery or night cooling recovery
• Low sound level
• Constructed in Galvanized and Aluzinc Steel
• Insulated with 50mm dense mineral wool for quietness and facilitates use in any warm or cold space
• No condensate drain required

Wireless Intelligent IQ Control System

This unit comes complete with an Intelligent control system for a healthy and energy-efficient indoor climate.

• Connects wirelessly to your AXCO HERU MVHR unit with an operating range of approximately 50m through walls and floors.
• User friendly 4.3” touch panel (including docking station) with status bar for quick overview
• APP – ability to control / monitor through smartphone App
• Colour Theme – choose light or dark colour to suit your home
• Holiday Mode – energy saving facility
• 7 Day Scheduler – set up to your home requirements
• Clock – Screen saver shows time and internal/external temperatures
• Alarm History – Real-time diagnostics functionality
• VOC Sensor – Supports regulation of VOC

Technical Specifications

• Fan Speeds – RPM
• Max Flow - Free Blowing (L/S) 200
• Maximum Airflow: 650 m³/h
• Heat Recovery Efficiency: 85%
• Duct Connections 200mm
• Sound Level: 41 dB(A) at 3m
• Power Supply: 230V Single Phase
• Fan Power: 200W
• Inlet Orientation: Side
• Touch Panel
• App Controlled via Cloud
• Regenerative Heat Recovery
• Max Speed (RPM) 2860
• Specific Fan Power: 0.32%
• Weight (KG) 77kg
• Dimensions (L x W x H) (mm) 1236 x 631 x 570

2 year warranty
